Displaying a jTable inside another jTable // JTable cellRenderer

2007-04-04 in Java / Legacy tagged Embedded / Java / JTable / Multivalue / Swing by Marc Nuri | Last updated: 2023-10-31

Note

This code in this post has been updated, you can find it here.

Java is one of the greatest object-oriented languages. This can easily be seen when using Swing components, JTables are a great example. Briefly, jTables are just a base to display a matrix of JComponents. So inside a JTable you can embed any object which extends the JComponent class.

In this post, I'll show you an easy way to display a JTable inside another JTable as a cellRenderer. If you've ever worked with multivalued data models this can be of great help. In this simple example, I'll create a small contact manager where the name, phones, and e-mail addresses of the contact can be stored. If the contact has more than one e-mail address or phone number, then they'll be displayed using an embedded JTable.

Let's start by defining some variables to hold the data for our example's model:

// We declare the variables where we'll store our data
// First an array Object which will be our main table
Object[][] data = null;
// We declare an Array String to hold the name of the main table columns
// In this example case we are going to store:
//   contact name, email address(es), phone number(s) and  creation date.
String[] columns = {"Name", "E-Mail","Phone","Creation Date"};

Next, let's create a function to populate the variables with some sample data:

// First, populate our data object with some example values
public void populateData(){
  /* Two contacts*/
  data = new Object[3][columns.length];
  data[0][0] = "Peter";
  String[] emails = {"peter@yahoo.com", "strange@name.com"};
  data[0][1] = emails;
  String[] phones = {"555 35 25 65" , "555 35 24 63"};
  data[0][2] = phones;
  data[0][3] = new Date();
  data[1][0] = "Jackson";
  data[1][1] = "Jack@hotmail.com";
  String[] phones2 = {"555 35 24 33" , "555 11 88 88", "332 55 25 34"};
  data[1][2] = phones2;
  data[1][3] = new Date();
  data[2][0] = "Robert";
  data[2][1] = "rob@hotmail.com";
  data[2][2] = "555 28 95 81";
  data[2][3] = new Date();
  /* As you can see, we've stored two contacts one with two e-mail accounts and two phone numbers,
  and another member with three phone numbers */
}

Finally, we create our table models and the cell renderer that will allow us to display the data in a nested JTable:

// Next, we create our table models
public void createModel(){
  /* First we create the main model
  We overide the AbstractTableModel necessary methods*/
  AbstractTableModel modelo = new AbstractTableModel() {
    public String getColumnName(int col) {
      return columns[col];
    }
    public Class getColumnClass(int col) {
      if(getRowCount() <1) {
        return null;
      }
      return data[0][col].getClass();
    }
    public int getRowCount() {
      return data.length;
    }
    public int getColumnCount() {
      return columns.length;
    }
    public Object getValueAt(int row, int col) {
      return data[row][col];
    }
    public boolean isCellEditable(int row, int col){
      return true;
    }
    public void setValueAt(Object value, int row, int col) {
      data[row][col] = value; fireTableCellUpdated(row, col);
    }
  };
  /* We apply the model to the main jTable */
  jTableData.setModel(modelo);
  /* We create a cell Renderer to display the data of the multivalue fields*/
  TableCellRenderer jTableCellRenderer = new TableCellRenderer() {
    /* These are necessary variables to store the row's height */
    private int minHeight = -1;
    private int currHeight = -1;
    /* Magic Happens */
    public Component getTableCellRendererComponent(
        JTable table, Object value, boolean isSelected, boolean hasFocus, int row, int column) {
      /* If what we're displaying isn't an array of values we return the normal renderer*/
      if(!value.getClass().isArray()){
        return table.getDefaultRenderer(value.getClass())
            .getTableCellRendererComponent(table, value, isSelected, hasFocus,row, column);
      } else{
        final Object[] passed = (Object[])value;
        /* We calculate the row's height to display data
        *  This is not complete and has some bugs that
        *  will be analyzed in further articles */
        if(minHeight == -1){
          minHeight = table.getRowHeight();
        }
        if(currHeight != passed.length*minHeight){
          currHeight = passed.length * minHeight;
          table.setRowHeight(row,currHeight);
        }
        /* We create the table that will hold the multivalue
        *  fields and that will be embedded in the main table */
        return new JTable(new AbstractTableModel() {
          public int getColumnCount() {
            return 1;
          }
          public int getRowCount() {
            return passed.length;
          }
          public Object getValueAt(int rowIndex, int columnIndex) {
            return passed[rowIndex];
          }
          public boolean isCellEditable(int row, int col){
            return true;
          }
        });
      }
    }
  }; /* Finally we apply the new cellRenderer to the whole table */
  TableColumnModel tcm = jTableData.getColumnModel();
  for(int it = 0; it < tcm.getColumnCount(); it++){
    tcm.getColumn(it).setCellRenderer(jTableCellRenderer);
  }
  // Note: if we need to edit the values inside the embedded jtable
  // we will need to create a TableCellEditor too.
}

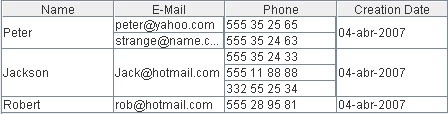

If everything goes well, you should see a table like the following:

Screenshot of the resulting nested JTable
Screenshot of the resulting nested JTable

The code will only allow you to display the data, but you won't be able to edit. If you want to edit the data you must also create a table cell editor. I'll analyze this in further posts.
